Description

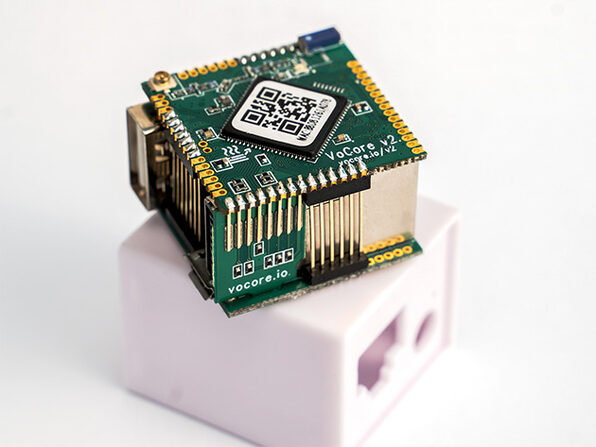

This bundle gives you a coin-sized computer and a screen that you can set up anywhere. The VoCore2 Ultimate is an open-source Linux computer and a fully-functional wireless router, which can be used as a VPN gateway, an AirPlay music streaming station, a private cloud for data storage, and much more. It comes with the VoCore2 screen, a super-fast screen for high-quality display usage for embedding devices. It's designed for standard USB2.0 devices rather than MIPI or HDMI, while the screen contains the memory to store the picture, allowing you to send data directly through USB.

  • Use the VoCore2 Ultimate as a VPN gateway to secure your network
  • Stream AirPlay music & store your data in a private cloud
  • Display images in high-quality for embed devices using the VoCore2 screen
  • Display real color images & videos for non-MIPI, HDMI devices

Specs

  • VoCore2 Ultimate:
    • Size: 0.1"H x 3.8"L x 2.3"W
    • CPU: MT7628, 580 MHz, MIPS 24K
    • Memory: 128MB, DDR2, 166MHz
    • Storage: 16M NOR onboard, support SDXC up to 2TB
    • Wireless: 802.11n, 2T2R, speed up to 300Mbps
    • Antenna: 1 U.FL slot, 1 onboard antenna
    • Ethernet: 1 port, up to 100Mbps
    • USB: support USB 2.0, up to 480MBit/s
    • PCIe 1.1: supported (option)
    • GPIO: >=40 (pinmux)
    • UART: x3 (UART2 for debug console)
    • PWM: x4
    • A/D convert: 4 channels
    • D/A convert: 1 channels
    • Audio playback: support (3.5mm jack)
    • Audio record: support (3.5mm jack)
    • Debug console: USB2TTL (micro USB, for power and console)
    • Shell included
    • Power supply: 3.6V ~ 5.5V, 500mA
    • Power consumption: 74mA Wi-Fi standby, 230mA Wi-Fifull speed, 5V input
  • VoCore2 Screen
    • Size: 97mm x 58mm
    • Display: 4 inch
    • Interface: USB 2.0 480MHz
    • Colors: 24bit, 16bit, 8bit
    • Resolution: 800 x 480
    • Frame per second: 24(24bit color), 30(16bit color)
    • Touch pad not supported
    • Driver: framebuffer
    • Power supply: micro USB 5.0V
    • Power consumption: normally 0.5 watts

Includes

  • VoCore2 Ultimate
  • VoCore2 800 x 480 screen
